Basics and Application of a Typical NPN Transistor in New England

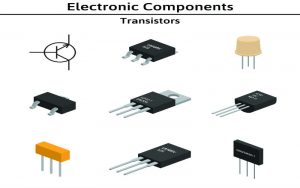

A 2N2222 transistor is an electronic component, more specifically an NPN bipolar junction transistor, or BJT, with a wide range of applications. It is capable of moderately high-speed operations with a design intended for low power and medium voltage use.

The Basics

The term NPN refers to a P-doped layer between a pair of N-doped layers. The 2N2222 has an emitter terminal, a collector terminal, and a base terminal. It’s current-controlled with a collector current of 800 mA and a500mW power dissipation.

Applications

As a current-controlled transistor, the 2N2222 uses a small current in the base terminal to push high current between the collector and emitter terminals. Due to its quick response time, it’s utilized for switching purposes.

Other applications are:

  • Switch appliances on or off automatically
  • Current amplification
  • Automation and embedded designs
  • Pulse width modulation

2N2222 transistors in Massachusetts are a commonly-used transistor and a typical example of NPN transistors. They appear frequently in small-signal applications and continue as an enduring general-purposed transistor.

Call a Trusted Components Supplier

For 2N2222 transistors in Massachusetts, a fully AS9120 certified electronics supplier with an extensive database of electrical components will be able to provide exceptionally high-quality and competitively priced transistors as well as semiconductors, diodes, integrated circuits, interconnect, passives electronic hardware, and more. Call Cornerstone Components at 631-474-0987 or visit

us online to find your electronic component today.
